HOW to USE SANWA PRODUCT on "TAMIYA DANCING RIDER" Part 2

We uploaded how to place our Receiver and speed controller on TAMIYA Dancing Rider last time.

We introduce how to set up Transmitter "MX-V" setting for Dancing Rider.

Before starting transmitter setting, it should be checked some points.

Please follow steps in the below.

Step 1

　D/R(Dual Rate) is"100％" as default value.

※Click Picture to see larger vision

Step 2

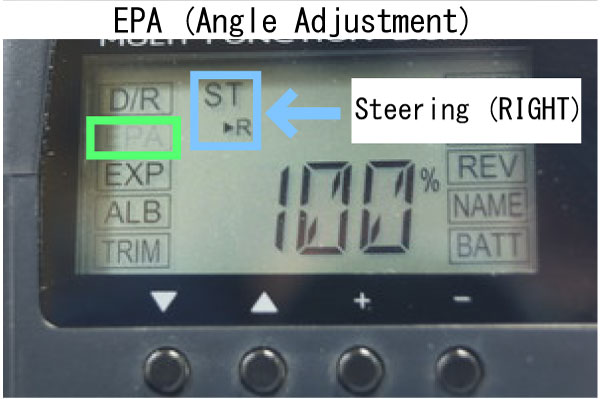

EPA(End Point Adjustment) is "100％" for both Right and Left. (R/L) as default value.

※Click Picture to see larger vision

Step 3

EXP (Exponential) is "0%" for both ST (Steering) and TH (Throttle) as default value.

※Click Picture to see larger vision

Step 4

　ALB（Anti-Lock Brake）is "OFF" as default value.

※Click Picture to see larger vision

Step 5

TRIM ST(Steering) is "0％" as default value.

Steering Trim will be set when driving.

※Click Picture to see larger vision

Step 6

　TRIM TH(Throttle) is "0％" as default value.

※Click Picture to see larger vision

Step 7

SUB-T(Sub-Trim) ST(Steering) is "0％" as default value.

※Click Picture to see larger vision

Step 8

SUB-T(Sub-Trim) TH(Throttle) is "0％" as default value.

※Click Picture to see larger vision

Those above steps are checking transmitter setting before starting transmitter setting.

※Please check transmitter setting before BIND with Receiver.

From next steps, let's start transmitter setting.

Step 9

Bind Transmitter "MX-V" with Receiver "RX-371W."

Turn on "MX-V" and turn on display and red light as below picture.

※Click Picture to see larger vision

Turn on RX-371W holding with Bind Button.

※Click Picture to see larger vision

When receiver try to bind with transmitter, receiver red light will flash on and off.

When the light flash on and off, press on transmitter bind button.

※Click Picture to see larger vision

Then, receiver red light will keep turning on.

Receiver bind with transmitter and ready to operate.

※Click Picture to see larger vision

If transmitter red light and receiver red right keep turning on as above picture, finished "BIND."

　※Please check the light.

After finished bind setting, try to set on thesis side.

Installed SANWA servo "SRM-102Z," Dancing Rider will lean as below picture.

※ Servo dimension is little bit different, so this thing is happened.

※Click Picture to see larger vision

Length of Linkage arm cannot adjust, so please set steering trim on transmitter side during driving.

Also, SANWA "BL-sport (Speed Controller)" is auto cognition when you turn on transmitter and receiver, so the speed controller do not need to set.

Let's driving TAMIYA DANCING RIDER!!

【Notice】

Normal battery source is 4 AA battery.

Available driving time will be change due to surface condition and grip condition.

※ Normal available driving time is about 10 - 15 minutes.

Also, the time will be difference by AA battery brand.

After 10 - 15 minutes, speed and steering will be slow.

Normally, speed controller fail safe function will work and stop the car driving.

When you feel speed become slow, please stop to drive.

If battery voltage rapidly drop due to poor remaining battery, servo and receiver cannot receive enough power supply.

This will be caused trouble not to control.

Please follow all steps.

Let's enjoy Dancing!!
